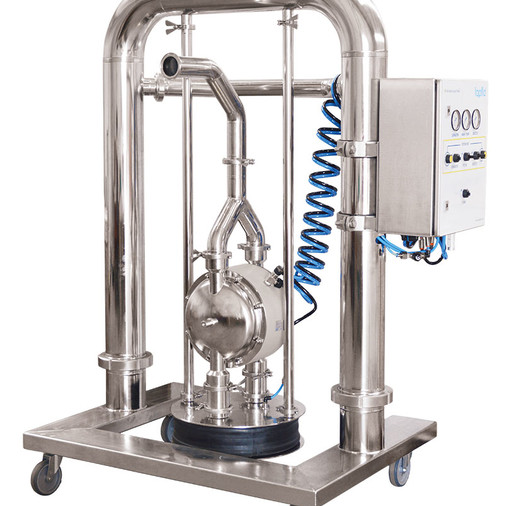

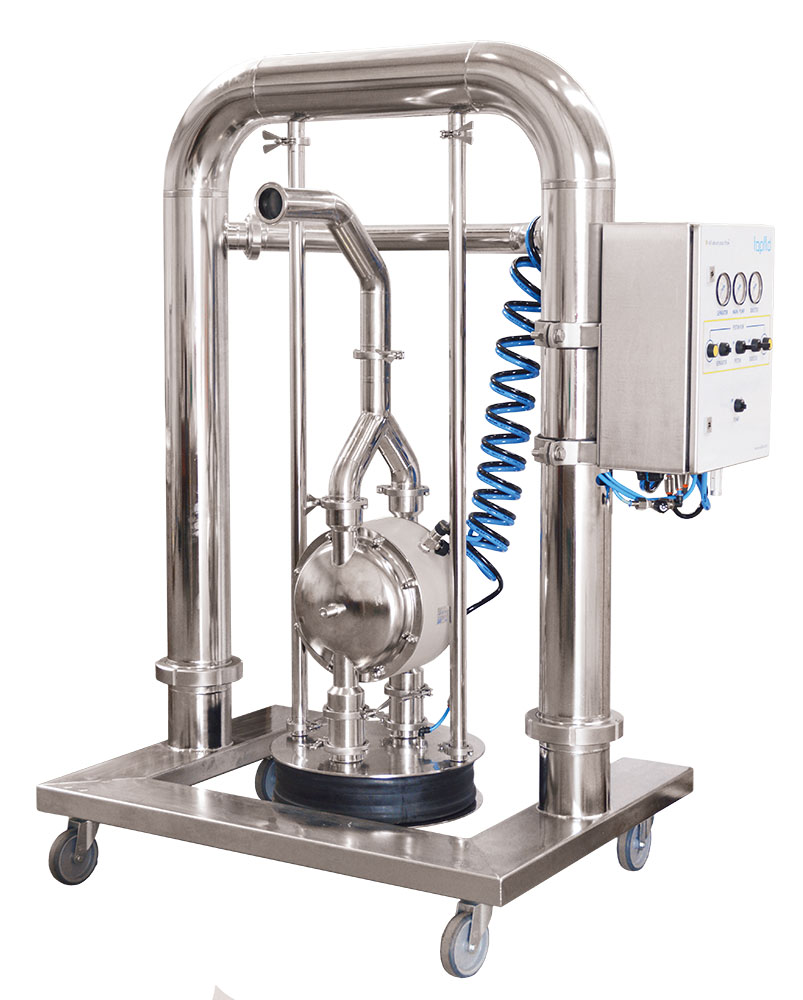

The HVS Drum Unloading System is designed for handling highly viscous liquids in industrial as well as hygienic applications. The system is emptying substances transported in barrels, such as:
- tomato paste
- coconut oil
- tahini oil
- resins
- fruit
- vegetable pulps

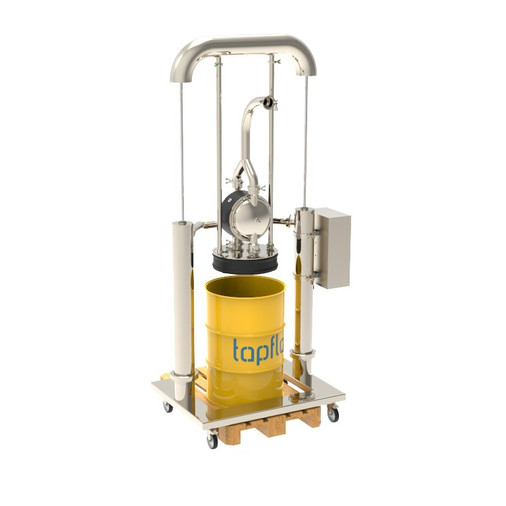

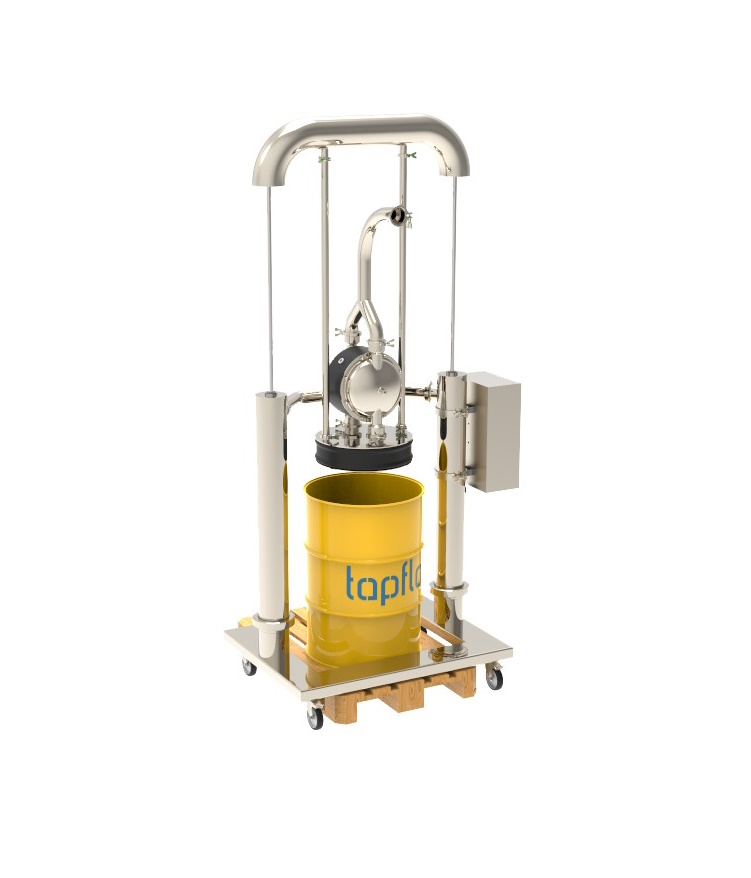

While the pump operates, actuators move it downward, pushing liquid into its chambers for easier transfer to the discharge line.
The system is custom designed for best efficiency and safety in the process of pumping high viscosity, paste-like, liquids out of transport drums.
Fast facts
- Max. capacity: 590 l/min
- Volume per stroke: 2 300 ml
- Max discharge pressure: 8 bar
Typical applications
| Industry | Example of application |
| Food & Beverage | tomato paste, caramel, fruit and vegetable concentrate, peanut butter, mayonnaise, nougat paste, chocolate/fudge, glycerine, oil |
| Cosmetics & Pharma | cosmetic and pharma vaseline, ointment, cream & lotion, semi-solid wax/paraffin, glycerine, oil, lip gloss, mascara, facial cleanser |
Materials
| Wetted metal details | stainless steel AISI 316L electro polished or sandblasted |
| Liquid contact surfaces roughness |
Ra < 1.6 (standard) (Ra < 0.8 and 0.5 as option) |
| Centre block (not wetted) | PP, PP conductive, aluminium |
| Diaphragms | PTFE, PTFE with white back, EPDM, white EPDM, white NBR, NBR (non FDA) |
| Valve balls | PTFE, AISI 316, Ceramic, SiC, EPDM (non FDA), NBR (non FDA) |
| Air valve | Brass (std.), stainless steel AISI 316L or PET with NBR (std.), EPDM or FKM O-rings |
| Housing stud bolt | A4-80 |
|
Завод
|
Tapflo |
